Linear Stage Actuator 100mm Ballscrew 1605 Double Optical Axis Linear Rail Guide Manual Slide Stage C7 with Ruler for CNC Router Z-axis
4.2 (26 items)
Limited Time SaleUS$81.29 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211200590 | Release Date | 2026/04/04 | List Price | US$54.20 | Model Number | 211200590 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

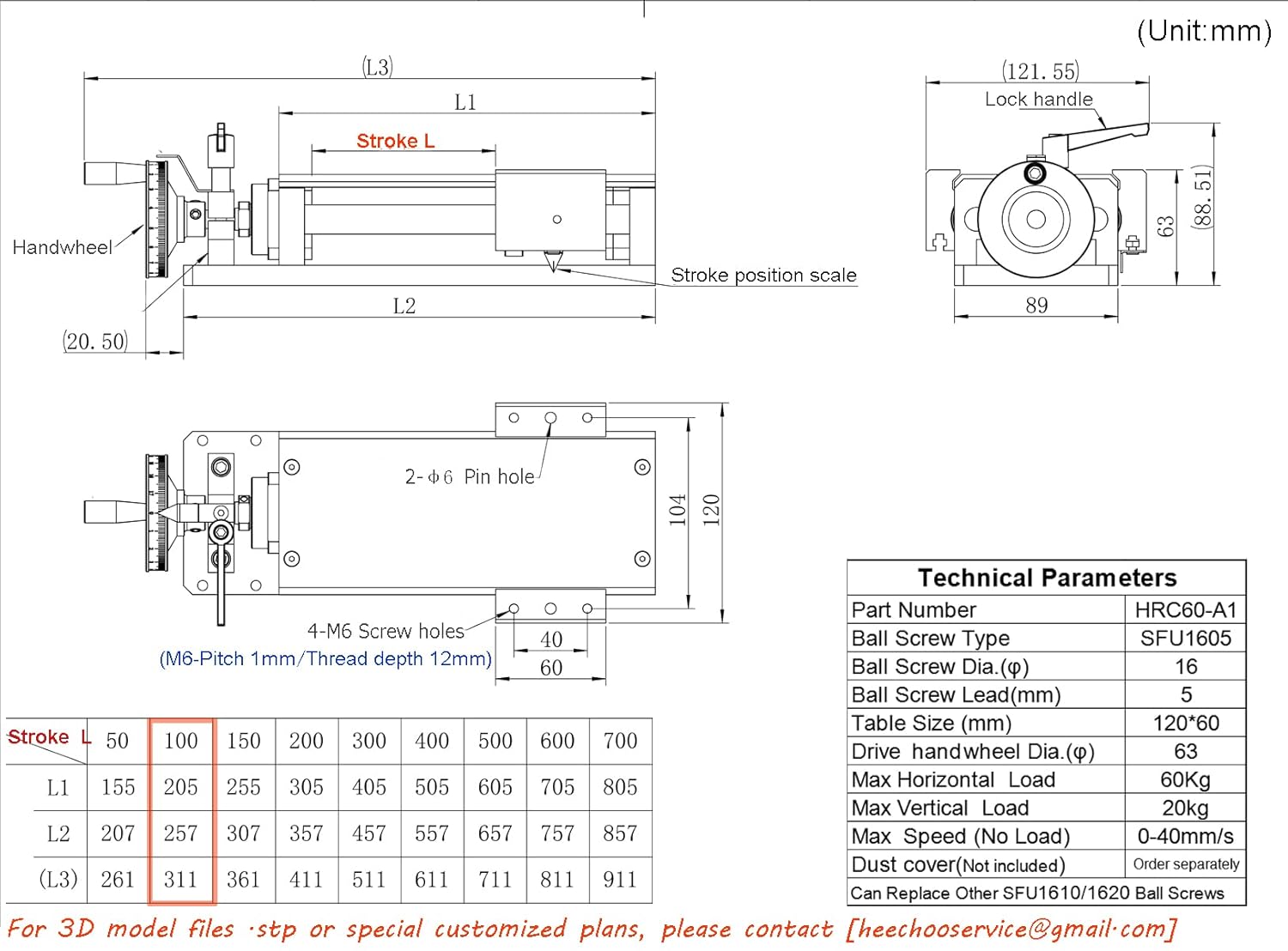

PACKAGE INCLUDED 1 x Manual slider 1 x Laser scale handwheel with lock and pointer 1 x Side HD ruler We have 3D drawings and CAD drawings.Please contact (heechooservice@gmail.com) for STP files BALLSCREW FEATURES Stroke--100MM / Total length L2--257MM Horizontal load(max)--40kg /Vertical load(max)--15kg / Product weight--3kg PARAMETERS 1. Aluminum Profile (wide* high): 89x11mm 2. Front panel height :89mm, rear plate height: 61mm 3. A HD ruler is mounted on the side of the slider to guide the actual position 4. The handwheel scale divides the lead by 360 degrees, and the screw manual lock can be fixed at any desired position. 5. Ball screw type: 1605 (diameter 16mm, lead 5mm , 1610 screw / 1620 screw can be replaced.) 6. Ball screw accuracy: C7,Repeat positioning accuracy: ± 0.02mm 7. Material: Aviation Aluminum 6061,sandblasted on the surface 8. Can be equipped with electric: 57 stepper motor, servo motor (customer needs different flexible configuration)
| Item Weight | 6.89 pounds |
|---|---|
| Manufacturer | Heechoo |
| Package Dimensions | 15.2 x 5.2 x 3.07 inches |
