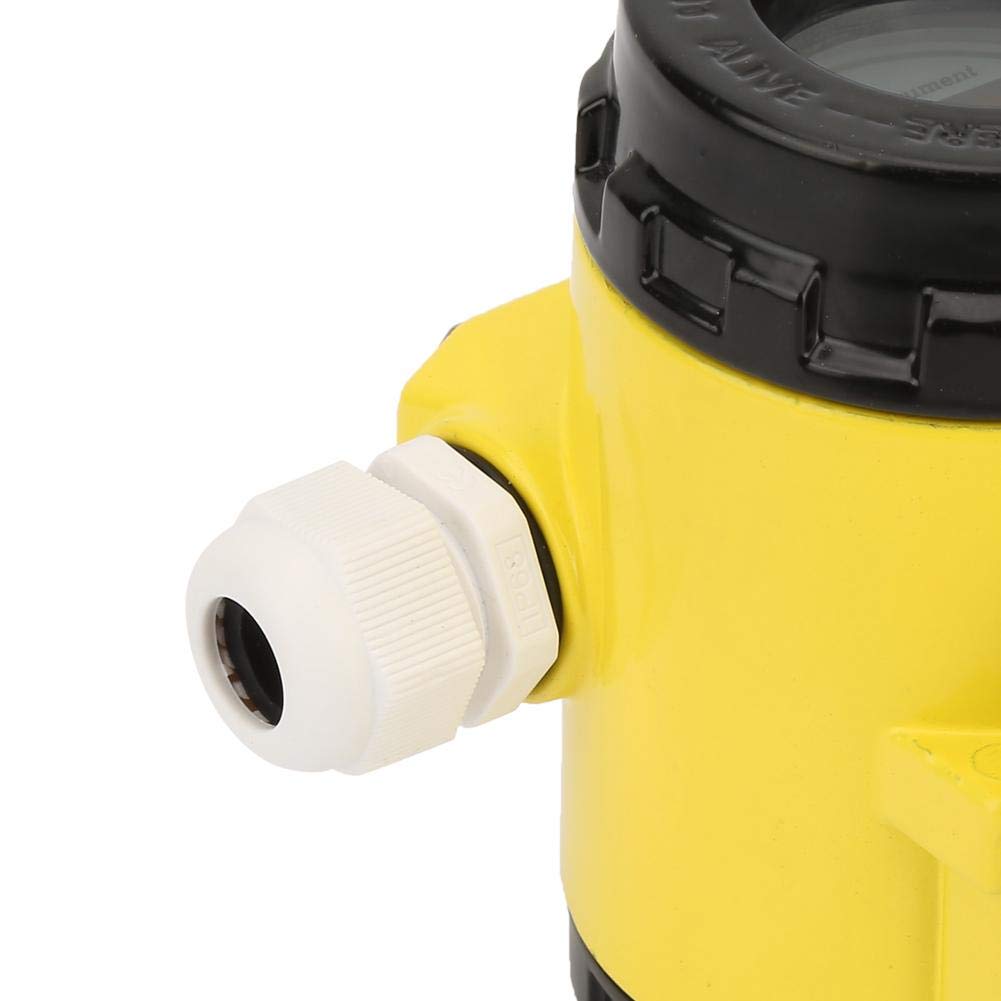

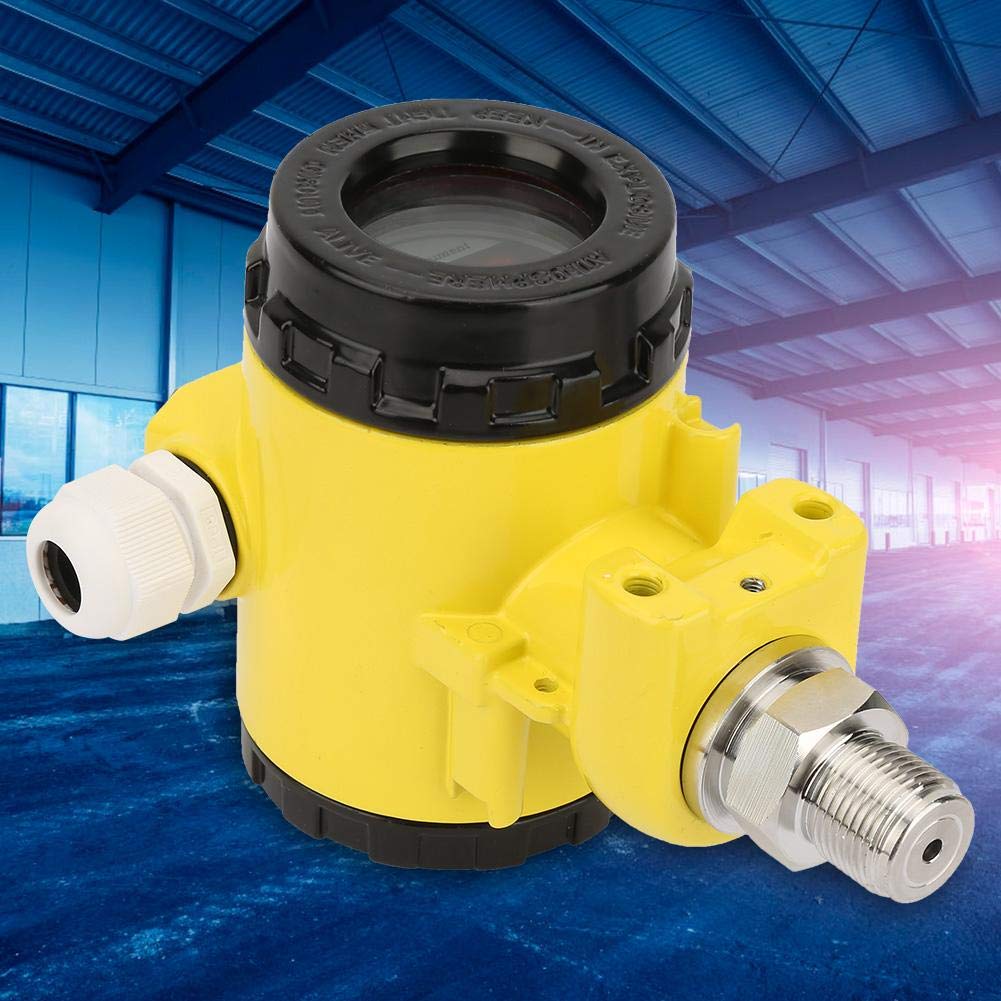

Explosion-Proof Pressure Transmitter, 4-20mA LCD Digital Pressure Sensor for a Variety of Harsh Industrial(0~1.6Mpa)
4.4 (34 items)
Limited Time SaleUS$38.11 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211152999 | Release Date | 2026/04/04 | List Price | US$25.40 | Model Number | 211152999 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: 100% brand new and high quality Made of premium Stainless steel and die-cast aluminum material , durable in use Full digital calibration, no potentiometer the movable lower temperature drift. Enhanced anti-jamming design suitable for a variety of harsh industrial With IP 65 level waterproof and excellent Explosion-Proof performance Specification: Measuring medium: liquid or gas (non-corrosive to stainless steel) Overall material: diaphragm 316s stainless steel, process connection 304 stainless steel, shell die-cast aluminum Pressure range:0~60Kpa,0~100Kpa,0~0.6Mpa,0~1.0Mpa,0~1.6Mpa,0~2.5Mpa, 0~4.0Mpa,0~6.0Mpa(Optional) Pressure mode: gauge pressure, absolute pressure, negative pressure Output signal: 4~20mA Power supply voltage: 24VDC Accuracy level: 0.25% FS Medium temperature: - 40 ~ 85 Ambient temperature: - 40 ~ 85 Seismic performance: 25g (20.. 2000 hz) Overload capacity: 200%FS Response frequency:500Hz Stability:±0.1%FS/ year Soil temperature drift:±0.01%FS/ Protection level: IP65 Explosion proof grade: Exia II CT6 Maximum power: current type0.02Us(W) voltage type0.008Us(W) digital type 0.015Us(W)note :Us= supply voltage Weight: 840 g / 29.6 oz(approx.) Package list: 1 x Explosion-Proof Pressure Transmitter
- 100% brand new and high quality
- Made of premium Stainless steel and die-cast aluminum material , durable in use
- Full digital calibration, no potentiometer the movable lower temperature drift.
- Enhanced anti-jamming design suitable for a variety of harsh industrial
- With IP 65 level waterproof and excellent Explosion-Proof performance
| Item Weight | 1.96 pounds |
|---|---|
| Manufacturer | Vikye |
| Product Dimensions | 5.91 x 4.33 x 2.95 inches |
